Fujian Fangda Weighing Equipment (Truck Scale) Co., Ltd.  is a manufacturer specializing in electronic truck scales. We offer high-precision electronic truck scales ranging from 10 to 150 tons, including the SCS digital series and export models.

·A. Steel specifications: Q235B checkered plate / flat plate, 8–10 mm thick; suitable for standard-capacity scales (≤80 tons), such as those used in processing plants and logistics facilities.

·B. Steel Grade: Q355B checkered plate / flat plate, 12–14 mm thick; standard tonnage (100–150 tons); suitable for high-frequency, harsh environments such as mines, docks, and quarries.

·C. Steel Grades: 510L / 610L / 700L high-strength steel for automotive chassis beams: Standard tonnage (150–200 tons), heavy-duty weighbridges, U-beam main frame structures.

·D Steel Grade: 304 / 316L stainless steel. Features: Exceptional corrosion resistance, including protection against rust, acids, alkalis, and salt spray. Standard tonnage (≤100 tons). Suitable for highly corrosive environments such as chemical plants, coastal docks, food processing plants, and waste transfer stations.

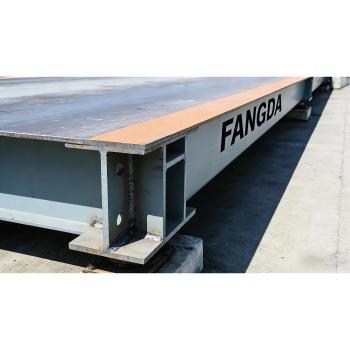

Structure: Features a U-shaped closed-beam structure.

1: Industrial weighing system equipped with anti-tampering features, enabling unattended operation.

2: The SCS series of truck scales has an accuracy class of C3/C6 and is OIML-certified.

3: National accuracy class III, with a verification scale interval of 3000–6000.

4: Standard platform widths are 2.5 m and 3 m, with customization available upon request; standard platform lengths range from 5 m to 20 m, and can be customized based on vehicle models.

5: Maximum permissible error: 0–500 e: ±0.5 e; 500 e–2000 e: ±1.0 e; 2000 e–maximum capacity: ±2.0 e.

6: Sensor accuracy class: C3; total error ≤ 0.02% FS

7: Operating temperature (indicator): -10°C to 40°C;

8: Sensor: -30°C to 70°C; relative humidity ≤ 90% RH, no condensation

9: Protection rating (sensor): IP67/IP68;

10: Instrument: IP65

11: Power requirements: AC 187 V–242 V, 50 Hz

12: Safe overload: 125% FS; Maximum overload: 300% FS
