Packing Information

Pcs/Carton: 1

Packing Size/Carton:1950X1600X1800

Packing Vol/Carton: 10.0 m³

N.W./Carton: 2200.0 kg

G.W./Carton: 2500.0 kg

QTY in 40HQ: 4 piece

QTY in 40GP: N/A

QTY in 20GP: N/A

       plastic powder mixing unit with high speed

CE approved mixing unit specially designed for the plastic high speed mixing,drying, coloring.

- high speed mixing motor inverter started

- high speed parts 3 methods temperature increatig: material self-friction/electric heating/conduction oil heating

- material discharge 2 methods: temperature controller automatic release/mixing time control

- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment

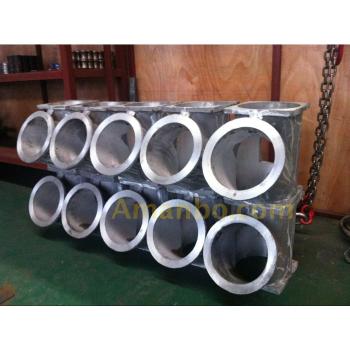

- the barrel covers and three direct links made of cast aluminum

- the bearing chambers with special designs for the lubricating oil injection

- driving motor over current protection design

- PLC touch screen control system can be choosed for the high automatic control requirement

- special designed mixing axis design can avoiding the raw material leaking from the barrel

- mixing paddles after strict balance test

Vertical mixing unit :

SRL-Z Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total Volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume(L)	75/150	150/375	225/450	375/750	600/1200
Mixing Speed(rpm)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
Heating/Cooling Method	Electric/self-friction/recycling water
Mixing Time(minutes)	8-12	8-12	8-12	8-15	8-15
DS Driving Motor(kw)	14/22/7.5	30/42/7.5	40/55/11	47/67/15	80/110/22
Inveter Driving Motor(kw)	22/7.5	45/7.5	55/11	75/15	110/22
Dimension(m)	1.95X1.6X1.8	4.58X2.24X2.47	4.8X2.64X2.48	5.6X3X3.1	5.17X3.2X4.48
Weight(kg)	2200	3400	3600	6500	9800



Horizontal mixing unit :

SRL-W model	SRLW300/1000	SRLW500/1600	SRLW800/2000	SRLW1000/3000	SRLW800*2/4000
Total Volume(L)	300/1000	500/1600	800/2000	1000/3000	800*2/4000
Effective volume(L)	225/700	330/1000	600/1500	700/2100	1200/2700
Stirring speed(rpm)	475/950/80	130/860/70	330/660/60	300/600/50	350/700/65
Mixing time(min)	8-12	8-12	8-12	8-12	8-12
Power(KW)	40/55/7.5	55/75/15	83/110/22	110/160/30	83/110*2/45
Weight(KG)	3300	4200	5500	6500	8000



Advantage:

- world famous brands major parts:

Motor	SIEMENS
Inverters	ABB/ FUJI / LG / OMRON
Contactors	SIEMENS / Schneider
Temperature controllers	OMRON/ RKC
PLC system	SIEMENS/ DELTA

- Skilled workers for machines producing

- Experience engineers all with passports ready for customers services

- Good Prices get from square quantity major parts purchase with lower cost

- Full line running test for customer checking before delivery

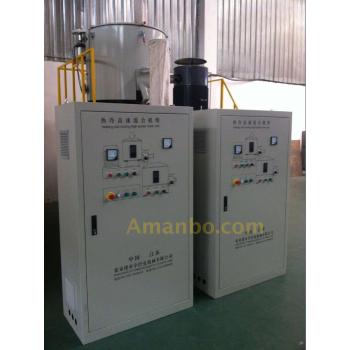

Pruduct images

 ​

We are manufactory specilizied in plastic machines for many years!   Welecome to visit us and contact us at any time! Hope long cooperation !
