Products Details

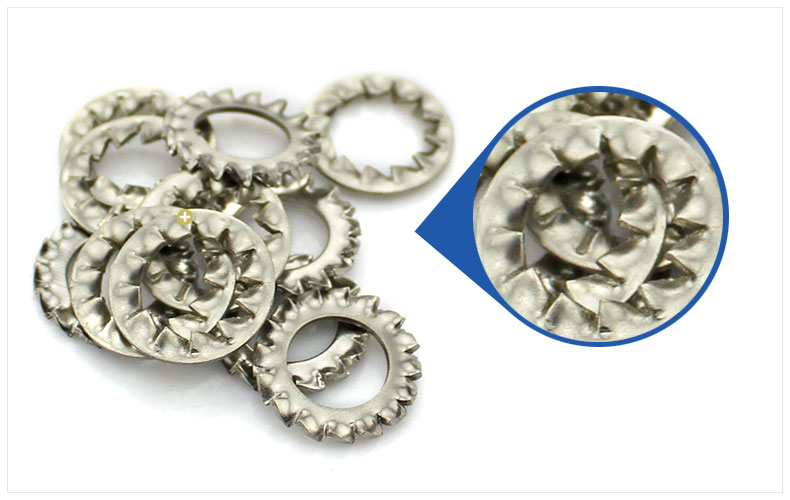

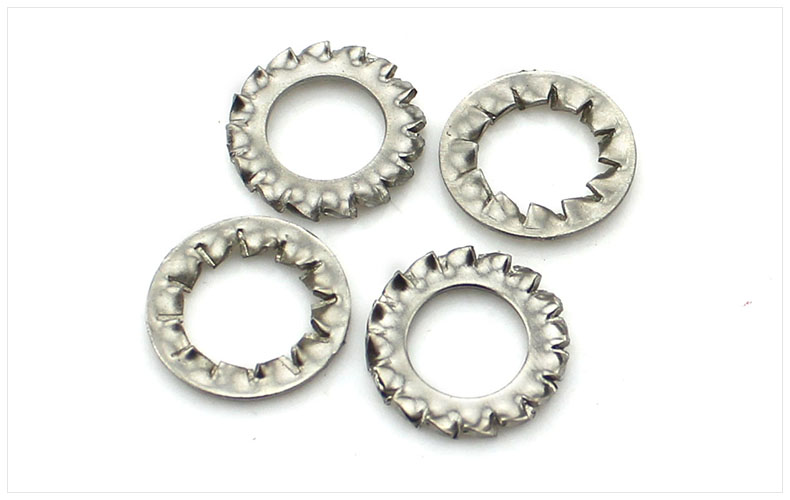

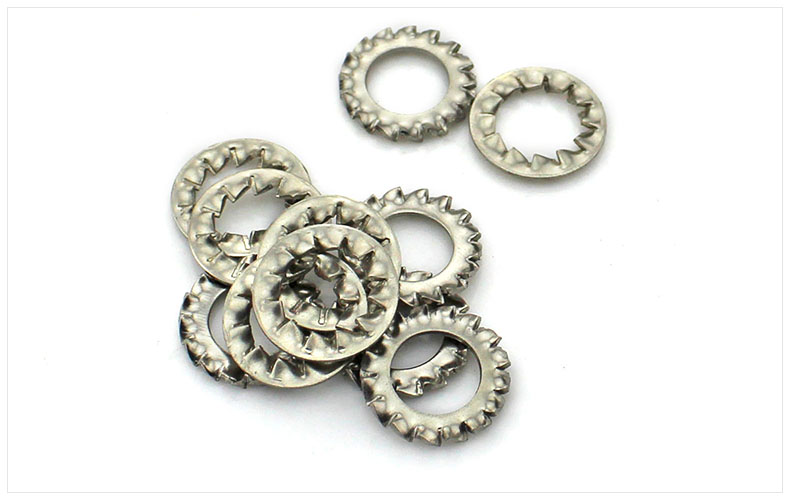

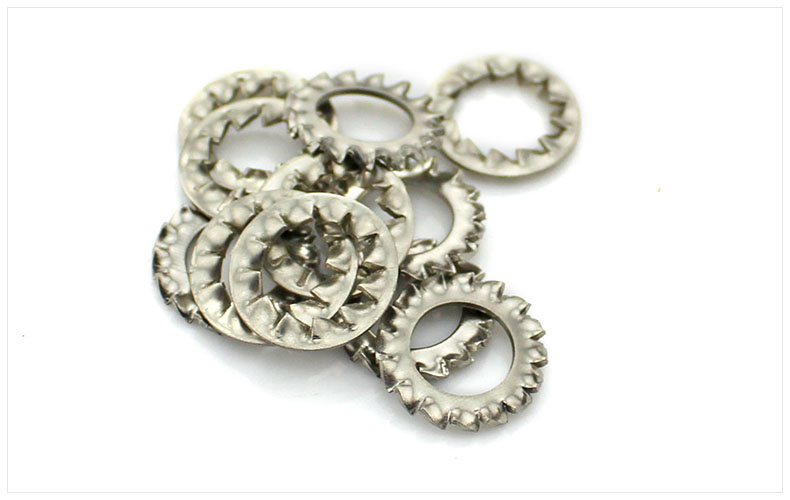

304 promoting stainless steel locking external tooth internal tooth washer serrated multi tooth gasket anti slip stop anti loosening gasket

Specifications and models:

M3 [200 grain] external serrated 304 material

M4 [200 grain] external serrated 304 material

M5 [100 grain] external serrated 304 material

M6 [100 grain] external serrated 304 material

M8 [50] external serrated 304 material

M10 [40] external Sawtooth 304 material

M12 [30] external serrated 304 material

M14 [20] Serrated 304 material

M16 [10] external serrated 304 material

M18 [10] external serrated 304 material

M20 [5] external serrated 304 material

M22 [5] external serrated 304 material

M24 [5] external Sawtooth 304 material

M27 [3] external serrated 304 material

M30 [3] external serrated 304 material

M3 [200 grain] internal serrated 304 material

M4 [200 grain] internal serrated 304 material

M5 [100 grain] internal serrated 304 material

M6 [100 grain] internal serrated 304 material

M8 [50] internal serrated 304 material

M10 [40] internal serrated 304 material

M12 [30] internal serrated 304 material

M14 [20] internal serrated 304 material

M16 [10] internal serrated 304 material

M18 [10] internal serrated 304 material

M20 [5] internal serrated 304 material

M22 [5] internal serrated 304 material

M24 [5] internal serrated 304 material

M27 [3] internal serrated 304 material

M30 [3] internal serrated 304 material

M3 [200 grain] external tooth 304 material

M4 [200 grain] external tooth 304 material

M5 [200 grain] external tooth 304 material

M6 [100 grain] external tooth 304 material

M8 [100 grain] external tooth 304 material

M10 [50] external tooth 304 material

M12 [30] external tooth 304 material

M3 [200 grain] inner tooth 304 material

M4 [200 grain] inner tooth 304 material

M5 [200 grain] inner tooth 304 material

M6 [100 grain] inner tooth 304 material

M8 [100 grain] inner tooth 304 material

M10 [50] inner tooth 304 material

M12 [30] inner tooth 304 material

M3 [100 grain] external serrated 316 material

M4 [100 grain] external serrated 316 material

M5 [50] external serrated 316 material

M6 [50] external Sawtooth 316 material

M8 [30] external serrated 316 material

M10 [20] external Sawtooth 316 material

M12 [20] external serrated 316 material

M14 [10] external serrated 316 material

M16 [10] external serrated 316 material

M20 [5] external serrated 316 material

M3 [100 grain] internal serrated 316 material

M4 [100 grain] internal serrated 316 material

M5 [50] internal serrated 316 material

M6 [50] internal serrated 316 material

M8 [30] internal serrated 316 material

M10 [20] internal serrated 316 material

M12 [20] internal serrated 316 material

M14 [10] internal serrated 316 material

M16 [10] internal serrated 316 material

M20 [5] internal serrated 316 material

FOB Price :

QTY:

Price

Min.Order : PCS

Quantity:

Total Cost :

DUMA

Verified Supplier

Product Details

Packing Information

Pcs/Carton: N/A

Packing Size/Carton:N/A

Packing Vol/Carton: N/A

N.W./Carton: N/A

G.W./Carton: N/A

QTY in 40HQ: N/A

QTY in 40GP: N/A

QTY in 20GP: N/A

品牌	BRT/佰瑞特	材质	304不锈钢
名称	304锯齿垫圈（外/内齿）	表面处理	未经处理
标准	GB862.2/GB861.1	包装说明	塑料袋/纸盒
尺寸	例如：M3（内径3mm）


存在正负公差特别在意者甚拍，螺母、平垫圈、挡圈等尺寸：以配套使用的螺丝的直径(粗细)为准					单位：mm

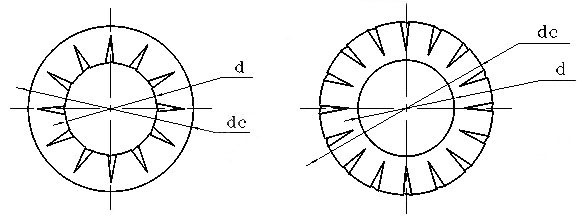

规格2	d		dc		厚度h	每个1000件约kg
规格2	min	max	min	max	厚度h	每个1000件约kg
2	2.2	2.45	4.2	4.5	0.3	0.02
2.5	2.7	2.95	5.2	5.5	0.3	0.04
3	3.2	3.5	5.7	6	0.4	0.05
4	4.3	4.6	7.64	8	0.5	0.12
5	5.3	5.6	9.64	10	0.6	0.24
6	6.4	6.76	10.57	11	0.6	0.26
8	8.4	8.76	14.57	15	0.8	0.69
10	10.5	10.93	17.57	18	1	1.22
12	12.5	12.93	19.98	20.5	1	1.49
14	14.5	14.93	23.48	24	1.2	2.51
16	16.5	16.93	25.48	26	1.2	2.77
18	19	19.52	29.48	30	1.5	4.67
20	21	21.52	32.38	33	1.5	5.58
