Supply Ability : 10PCS/ Day
Min.Order : PCS
Quantity:
-
+
Total Cost :
Product Details
Packing Information
Pcs/Carton: 1
Packing Size/Carton:400*300*260
Packing Vol/Carton: N/A
N.W./Carton: 8.0 kg
G.W./Carton: 8.7 kg
QTY in 40HQ: N/A
QTY in 40GP: N/A
QTY in 20GP: N/A

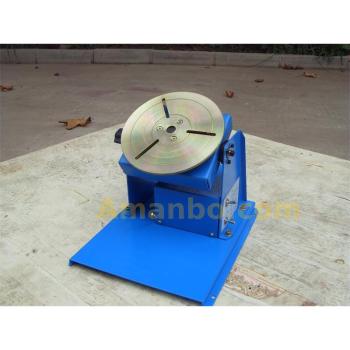

1.Stepless adjustable speed.
2.Precision and flexible structure,easy to operating & installing.
3.Designed for the lightweight(10kg or less) workpiece’s circular seam welding.

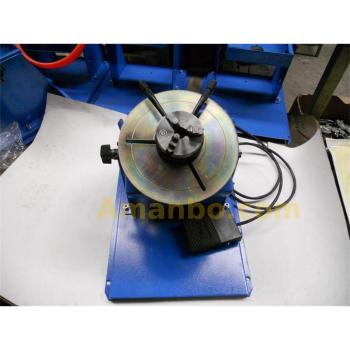

4.Can configure a welding chuck to fix the workpiece. 5.Can adopting the foot pedal to control the on/off of the positioner.
specifications
型号 MODEL
BY-10
输入电源电压
Power Input
AC 110V/220V 50/60Hz
负载能力0°/90°
Capacity(horizontal/vertical)
10Kg/5Kg
工作台直径
Table Dimension
180mm
工作台高度
Table Height
220mm
工作台转速
Rotation Speed
2-10 rpm
工作台翻转角度
Tilt Range
0-90°
工作台翻转方式
Tilt Mode
手动翻转 Manual
回转电机
Rotation Motor
15W
外形尺寸
Over Dimension
370×270×215mm
