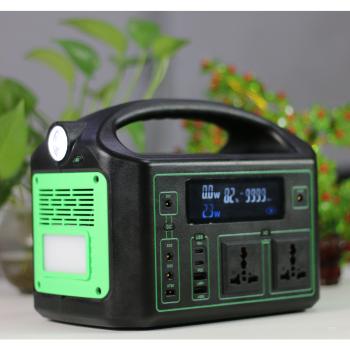

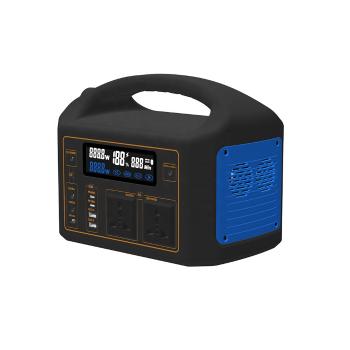

Consumer Electronics 300W 110V AC Power Supplies Emergency Power Bank Station Solar Battery Generator DC 12V 24V
Specifications:
| Model name | P320 |
| Optional Capacity | 93600mah / 124800mah/160800mah |
| Product size | L242mm*W160mm*H186mm |
| Net weight | About 4kg |
| Cell type | Lithium battery ICR18650 |
| Input | DC 3 port:14V-20V/60W(MAX) DC 15 port:14V-20V/60W(MAX) PD 8 port:5V-20V/50W(MAX)automatic identification Solar input: 15V-20V/100W(MAX)(The port identification refer to item three) |
| Output | USB*2:QC3.0 3.8V-12V/18W(MAX) TYPE-C*1:3.8V-12V/18W(MAX)support PD TYPE-C*1:3.8V-20V/60W(MAX)support PD DC*1:12V-24V/150W(MAX)The voltage is adjustable DC*2:9V-12.6V/5A(MAX) TX30*1:9V-12.6V/10A(MAX) AC*2:110V-120V/220V-240V(300W MAX)(AC output 110V/220V is is optional |
| Lighting | Low beam lighting:3W High beam lighting:3W |
| Simultaneous Charge and discharge | YES |
| Multi-protection | Over-voltage protection, Over-current protection, low-voltage protection, Over-temperature Protection, short-circuit protection |
| Full charge time | Adapter/car adapter: 8 hours 100w solar panel: 10 hours Simultaneous charging by 3,8,15 ports:3 hours |
| Cycle index | ≥500 times |
| Charging temperature range | 0oC ~+50oC |
| Discharging temperature range | -10oC ~+65oC |
| Storage temperature range | 0oC ~45oC,within 30 days |
| Long-term storage | 0oC ~40oC,within 180 days |
| temperature range | |
| Storage humidity | 45% ~85%RH |
| Long-term storage humidity | Advise charge fully the P320 when not used for more than 90 days |
Application:
For all 5v ,12v-24v indoor /outdoor devices .support Solar panel / Jump starter / tablet /Old round dc laptops / Newest Type c Laptops / camera/ mobiles/Fan / RC charger /Router/ mini refrigerator / Small LED TV / etc.
P320 Advantages:
A. Compared with the multifunction AC DC power banks, Our P320 functions and Specs are the best at present. most of the AC power banks only support 12V and the 12V is not constant, But our P320 has one Input/Output DC mutual port that can support 12V-24V Constant working, and P320 has 3 more DC 12V output ports support the 12v which is not constant.
B. P320 with 2 Type c port, one is only support type c output 18W (MAX), and the other type c port support Input (50W ) / Output (60W MAX ) ;
C. P320 with 2 AC output port (300W ) with Pure wave
D. P320 has 3 different input ways and can work at the same time, about 2 hours full charged if working together, very fast.
E. P320 can support 10A large current working.
P320 Accessories:
1.P320 portable power station *1pcs
2.AC power adapter *1pcs
3.DC cable *1pcs
4.USB-A to USB-C cable *1pcs
5.USB C to USB C cable *1pcs
6.laptop adapter *1set(8pcs)
7.In car charging cable(Male car charger to 5525 DC male) *1pcs
8.DC to in car charging cable(Female car charger to 5525 DC male) *1pcs
9.Product manual&warranty card

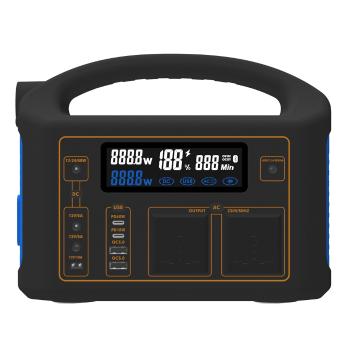

P320 ports instructions:
1.Far LED light;
2.Button:Button for LED light
3.DCinput/Output port :Input:13v-20v ;Output :12V-24V
4.Button:Button for DC port voltage selection
5.Near LED light;
6.DC*2pcs output port:12V ;
7.XT30 Output port:12V 10A;
8.TYPE-CInput/Output port:QC3.0/PD 60W;
9.TYPE-C Output port:QC3.0/PD 18W fast charge;
10.USB2*2 output port:QC3.0 fast charge;
11.Button:button for 2 USB ports;
12.AC*2 Output ports:AC 110v-240v;
13.Button :Button for AC port;
14.Fan*2;
15.DC input port;
16.LCD display:Show working voltage ,capacity percent,power(W) etc
