Diesel Engineering Tricycle – Configuration Options

1. Basic Model (18 HP)

• Engine: 18 HP single-cylinder water-cooled diesel engine

• Load capacity: 1.5–2 tons

• Carriage: 1.6m × 1.2m × 0.45m, 3mm thick floor plate

• Transmission: Shaft drive with high/low speed, 7-speed full-floating rear axle

• Brake system: Hydraulic / drum brakes

• Tires: Front 4.50-14, rear 6.50-16

• Frame: Ordinary channel steel, simple shock absorption

• Application: Small construction sites, short-distance transportation

2. Enhanced Model (22 HP)

• Engine: 22 HP single-cylinder water-cooled diesel engine

• Load capacity: 2–2.5 tons

• Carriage: 1.7m × 1.2m × 0.45m, 4mm thick floor plate

• Frame: Thickened channel steel with double-layer welding

• Rear axle: Heavy-duty type with differential lock

• Brake system: Vacuum-assisted hydraulic brakes

• Tires: 7.00-16 off-road tires

• Leaf springs: 10 widened and thickened springs

• Application: Tunnel mucking, general mining, medium construction sites

3. Heavy-duty Model (25 HP)

• Engine: 25 HP single-cylinder water-cooled diesel engine

• Load capacity: 2.5–3 tons

• Carriage: 1.8m × 1.3m × 0.5m, 5mm floor / 4mm side plates

• Rear axle: 8-speed heavy-duty full-floating with differential lock, high/low speed

• Brake system: Air-cut brakes (standard)

• Tires: 7.00-16 mining off-road tires

• Climbing capacity: ≥15°

• Frame: 6×14 through beam + double-beam reinforcement

• Application: Main mine tunnels, open-pit mines, heavy-duty construction

4. Mining & Explosion-proof Model (28–30 HP)

• Engine: 28–30 HP single-cylinder water-cooled / explosion-proof diesel engine

• Load capacity: 3–4 tons

• Carriage: 2.0m × 1.4m × 0.55m, 6mm floor / 5mm side plates

• Transmission: 10-speed heavy-duty rear axle with high/low speed

• Brake system: Air-cut brakes + parking brake

• Tires: 7.50-16 special mining tires

• Shock absorption: Dual hydraulic shock absorbers + 15 widened leaf springs

• Steering: Recirculating ball power steering

• Application: Coal mines, metal mines, steep slopes, harsh road conditions

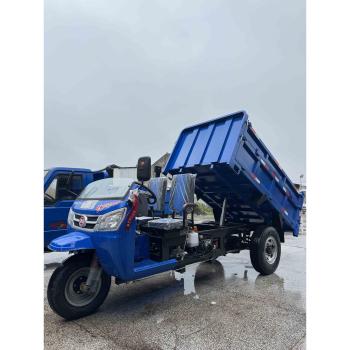

5. Premium Dump Model (24–28 HP)

• Engine: 24–28 HP water-cooled diesel engine

• Carriage: 2.2m × 1.4m × 0.5m, hydraulic three-way dump

• Brake system: Vacuum-assisted air-cut brakes

• Steering: Steering wheel with power assist

• Shock absorption: Dual shock absorbers + adjustable seat

• Tires: Front 600R14, rear 700R16

• Features: Fully enclosed cab, enlarged fuel tank, hydraulic cylinder

• Application: Concrete, sand and gravel transportation
